Hadrian, Inc.

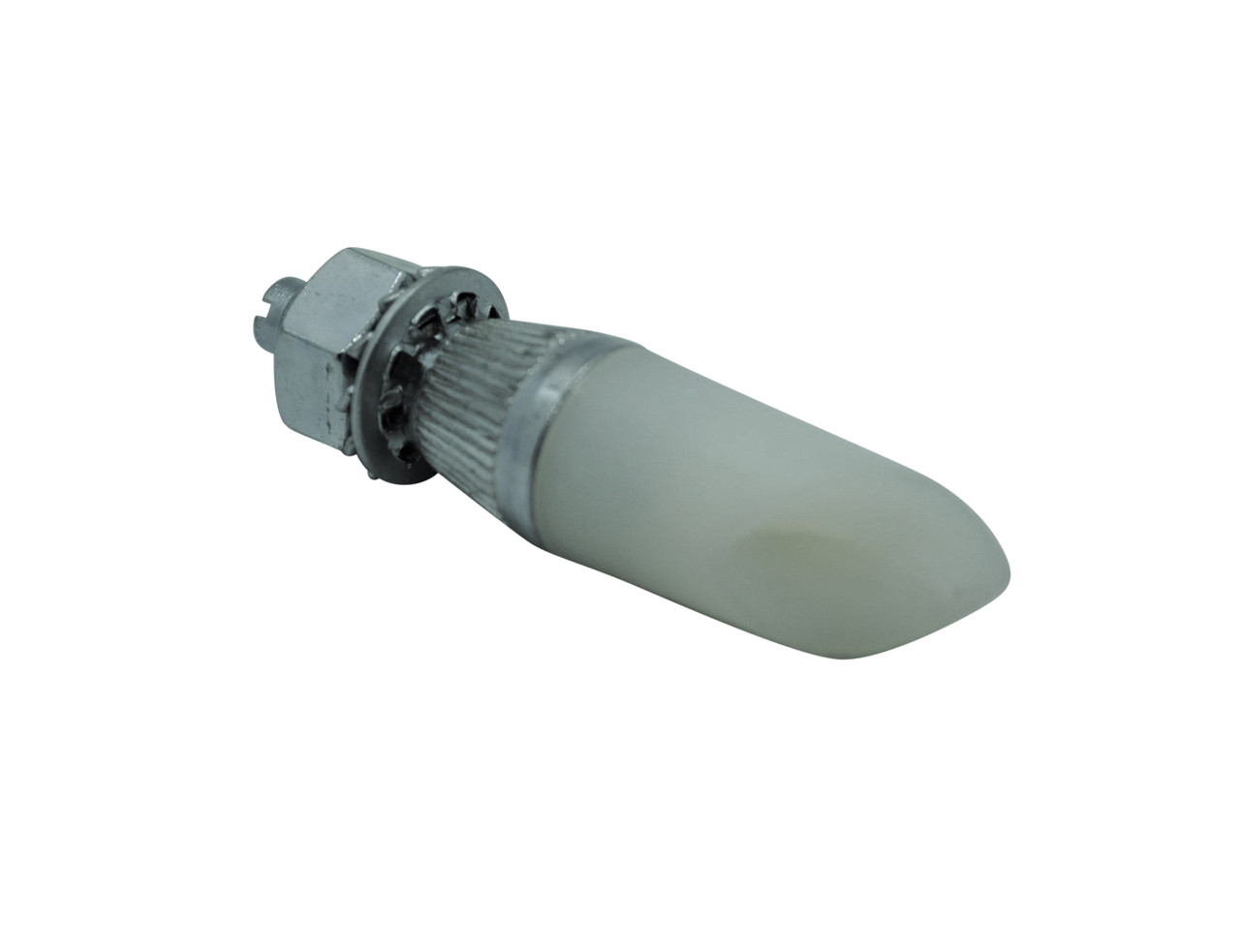

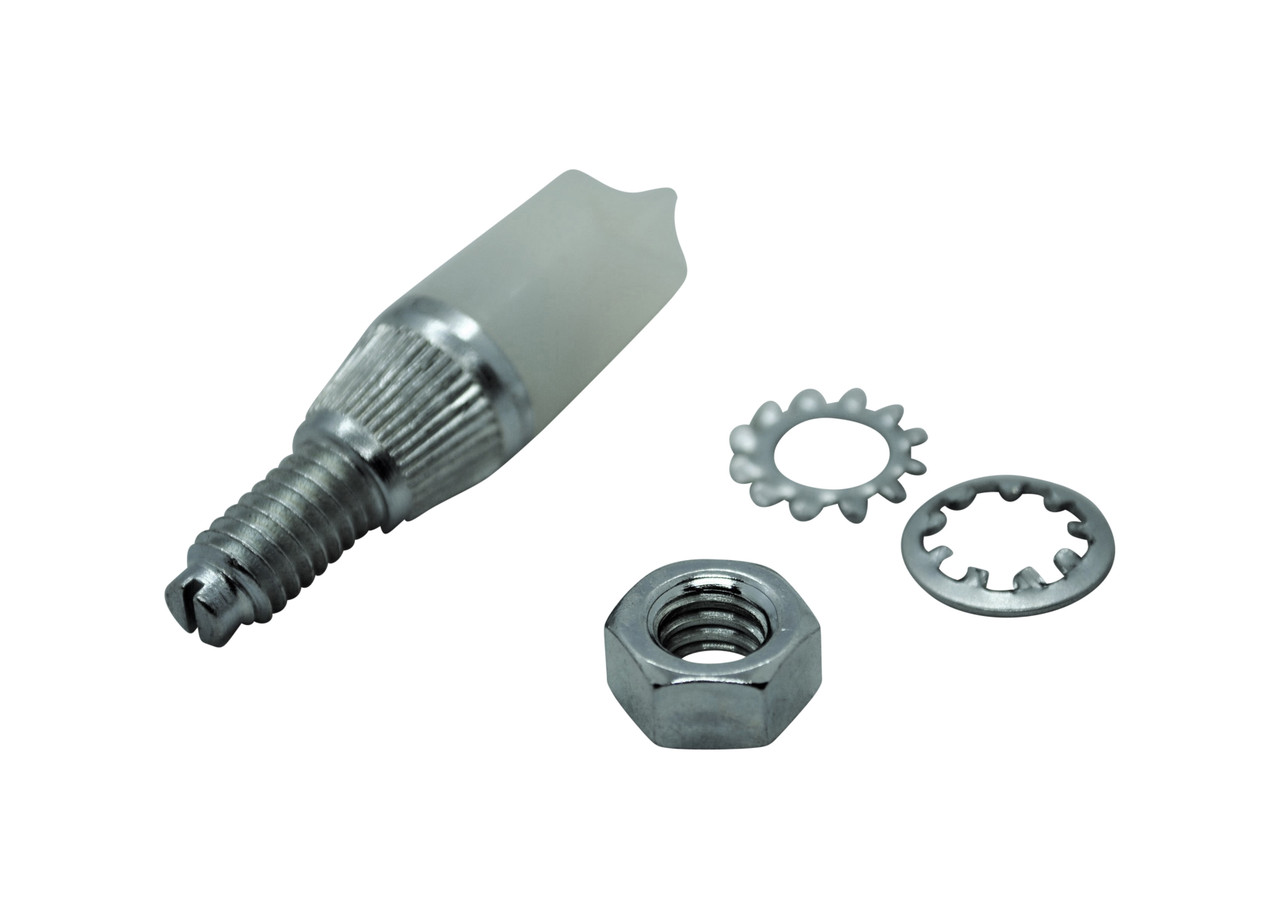

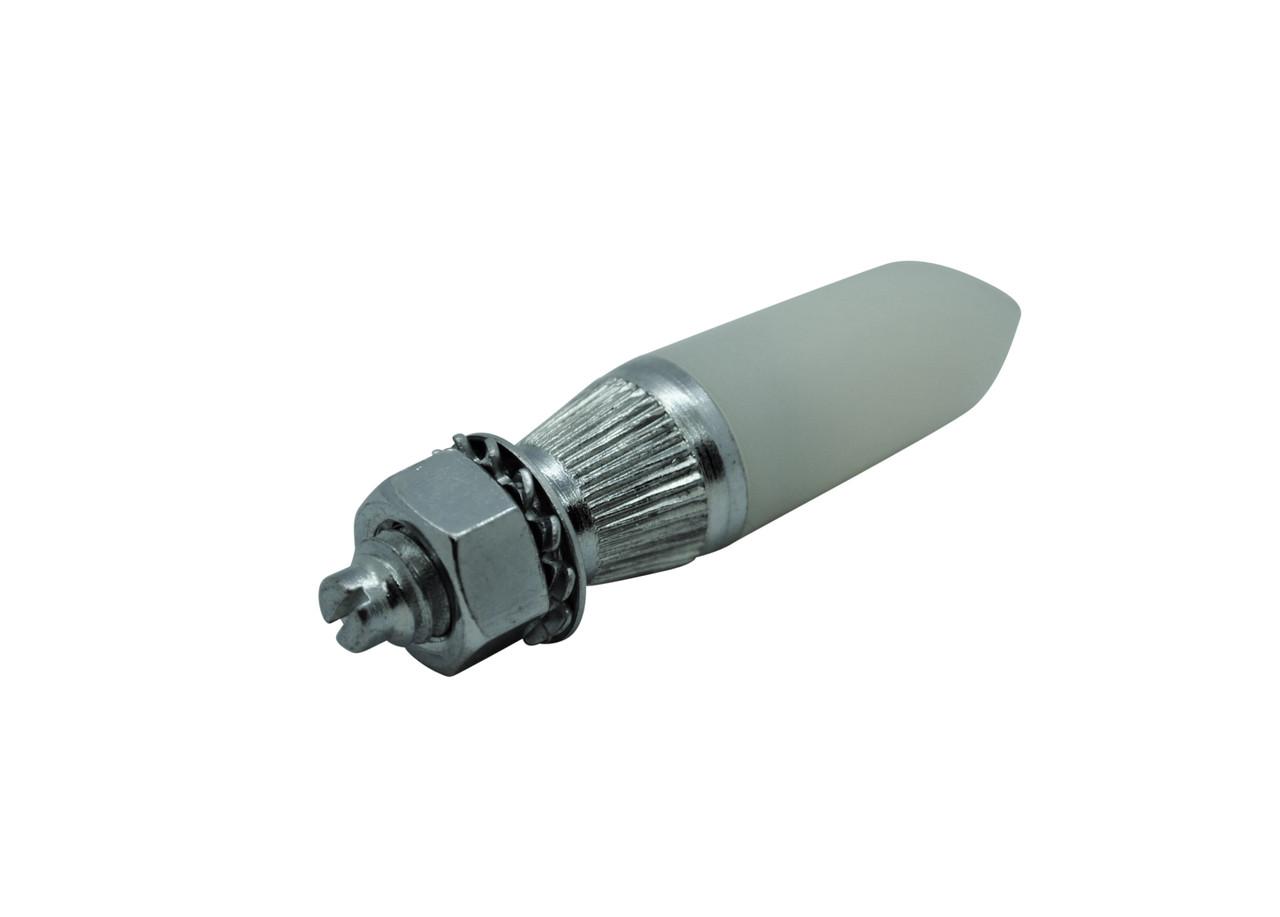

3-Pc Male cam assembly for Hadrian Baked enamel partition door; Includes pintle, washer and nut

$8.08
SKU:
HAD-601600

DESCRIPTION

Replacement cam assembly for Hadrian Partition baked enamel door.

SPECIFICATIONS

General description Male cam assembly for Hadrian's
baked enamel partition door, includes pintle, nut and washer
Male cam (pintle) - comprised of the following, starting at the top
- Nylon upper portion with beveled top
- Steel beveled portion
- Threaded portion
- Slotted tip
Overall height 2-3/16"
Material Nylon upper, steel lower
Nylon portion
Height, at highest point 1-1/16"
Dia 1/2"
Steel portion
Beveled portion above threads
Height 1/2"
Diameter
Where it joins nylon upper portion 9/16"
Where it joins threaded portion 3/8"
Threaded portion
Thread size 5/16-18
Length 1/2"
Slotted tip
Dia 13/64" (between 3/16" and 7/32")
Length 1/8"
Slot width 1/32"
Nut
Material Steel
Type Hex
thread type 5/16-18
Height 17/64" (between 1/4" and 9/32")
Outside dia 1/2"
External tooth washer
Material Steel
Thickness 1/32"
Diameter
Inside 11/32"
Outside 19/32"
Other door items by Hadrian that work with this product
- TP H8 Lower hinge
- TP H2 Female cam
- TP H12 Upper hinge
- TP H3 Upper hinge pin
- TP H5 Inner knob
- TP H4 ADA Inner knob
- TP H9 Outer knob
- TP 140 Strike/keeper
- TP 7810 Bumper hook
