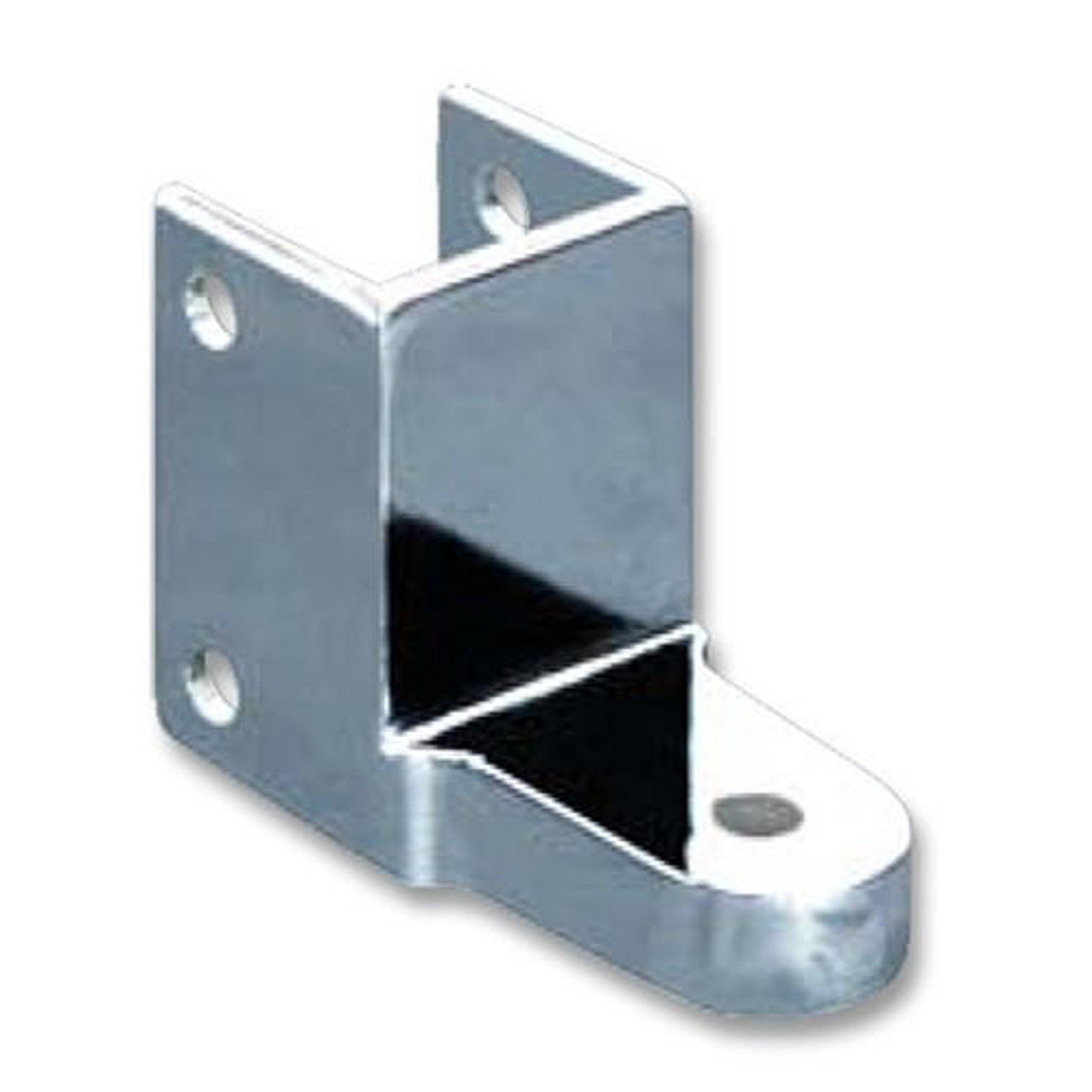

Bottom hinge for Metpar 1-1/4" Square edge partition door
- SKU:
- TP 3430
- MFG Part #:
- 3430
DESCRIPTION
Replacement bottom door hinge for Metpar plastic laminate partitions. Chrome plated Zamak.| Brand | : Metpar |
| Application | : Used on a 1-1/4: thick, square edged pilaster |
| Material | : Chrome plated zamak |
| 'A' Dimension (distance from back face of U-bracket | |
| to center of hinge pin hole | : 1.104" / 1-9/64" |
| (between 3/32" and 1-1/8") | |
| This part consists of | : |
| - A U-Bracket with holes for mounting to a pilaster | |
| - A tongue with a pintle hole | |
| U-Bracket | |
| Material thickness | |
| Front plate | : 9/64" (between 1/8" and 5/32") |
| Forks | : 3/32" |
| Height | : 2-1/4" |
| Width | |
| Inside | : 1-9/32" |
| Outside | : 1-1/2" |
| Depth | : |
| Inside | : 1-5/32" |
| Outside | : 1-9/32" |
| Mounting holes | |
| Qty | : 2 per fork |
| Dia | : 9/32" |
| Hole to hole OC | : 1-1/2" |
| Distance from back of fork to center of hole | : 11/32" |
| Tongue | |
| Distance from back face of U-bracket to center of | |
| hinge pin hole ('A' dimension) | : 1.104"/ 1-9/64" |
| (between 3/32" and 1-1/8") | |
| Height | : 1/2" |
| Length, from front face of U-bracket | : 1-9/16" |
| Width | : 1" |
| Pintle hole | |
| Dia | : 21/64" (between 5/16" and 11/32") |
| Distance from hole center to outer tip of tongue | : 19/32" |
