Door kit for Mills partitions, includes hinges, slide latch, keeper, bumper/hook and hardware
$83.53
- SKU:
- TP MLKIT
- MFG Part #:
- HDWT-ZD1
DESCRIPTION

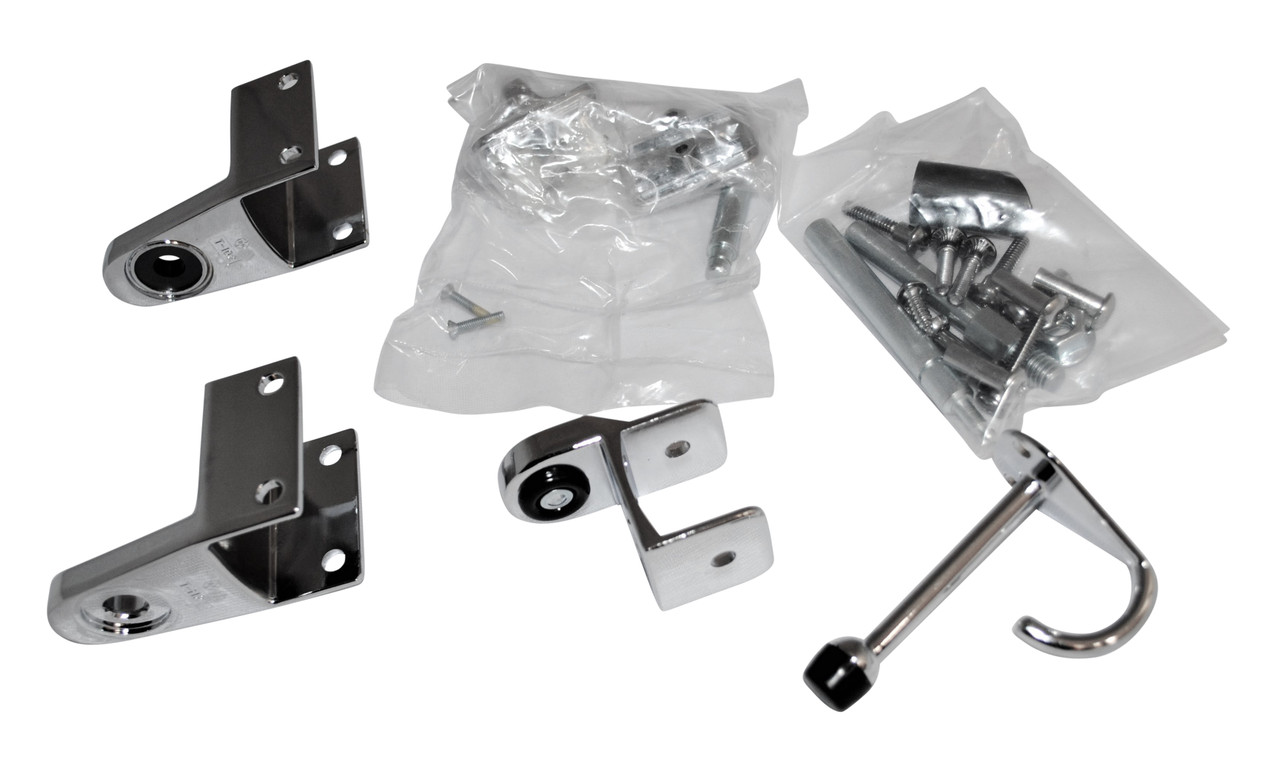

Mills door kit includes the following parts:TP 1001/1101ML top & bottom hinge, TP 4260ML bumper/hook, TP 2901ML slide bolt and latch, and TP 3161ML keeper/bumper.
SPECIFICATIONS
| This is a complete door hardware kit for Mills baked enamel partitions. It includes the following parts | |
| 1. TP 1001/1101ML top and bottom hinges with pin and pintel | |
| 2. TP 2901ML slide latch | |
| 3. TP 3161ML bumper/keeper | |
| 4. TP 4260ML bumper hook | |
| 5. Mounting hardware | |
| 1. Tp 1001/1101ML top and bottom hinge kit. This item comes with | |
| the top and bottom hinge, hinge pin, bottom pintle on a threaded | |
| shaft, wiz nut, and mounting hardware | |
| Top and bottom hinge | |
| Material | Chrome plated Zamak (pot metal) |
| Height | 2" |
| Ears | |
| Ear thickness | 1/8" |
| Face thickness | 5/32" |
| Inside depth, from middle of the back of the face | |
| to end of ear | 1-3/32" |
| Distance between ears | 1-9/32" |
| Mounting holes | |
| Dia | 1/4" |
| Hole to hole OC | 1-3/8" |
| Distance to hole from side edge of ear | 5/32" |
| Distance to hole from top or bottom of ear | 3/16" |
| Tongue | |
| Total length, from front of face | 1-13/16" |
| Width by hinge pin hole | 1-1/8" in front of face: 1-1/2" |
| Thickness | 3/8" |
| 'A' dimension (from back of face to center of hole | |
| in tongue) | 1/1-4" |
| Hole dia on top hinge | 3/8" |
| Hole dia on bottom hinge | 7/16" |
| Top hinge pin | |
| Dia | |
| Wide section | 3/8" |
| Narrow section | 3/16" |
| Length | |
| Wide section | 3-1/32" |
| Narrow section | 19/32" |
| Total length of pin | 3-5/8" |
| There is a cutout near the top of the pin | |
| Width | 3/32" |
| Depth | 1/16" |
| Distance to cutout tip of pin | 1/8" |
| Bottom pintle with pin - this part consists of a removable | |
| nylon pintle and a steel shaft | |
| Pintle part | |
| Material | black nylon |
| Height to top of point | 1-3/8" |
| Outside dia | 3/4" |
| Inside dia | 11/32" |
| Thickness of wall | 3/16" |
| Shaft - part long and round, part Hex, part threaded | |
| Round part | |
| Material | steel |
| Dia | 11/32" |
| Length | 2" |
| Hex part (part of shaft does not move) | |
| Width | 7/16" |
| Length | 9/16" |
| Threaded area | |
| Thread type | 3/8-16 |
| Length | 1/2" |
| Total length of shaft | 3-1/8" |
| Wiz nut | |
| Height | 11/32" |
| Hex dia | 9/16" |
| Outside dia | 3/4" |
| Thread size | 38-16 |
| 2. TP 2901ML slide latch | |
| Material | chrome plated Zamak |
| Width | 1-3/4" |
| Height | 1-3/8" |
| Thickness of outer rim | 1/8" |
| Moveable slide handle | |
| Base width | 1-3/16" |
| Base height | 1-1/8" |
| Handle thickness | 1/4" |
| Escutcheon plate | |
| Mounting holes | |
| Screw hole type | countersunk machine |
| Dia | 1/8" |
| Hole to hole OC | 3/4" |
| Distance to either hole from top or bottom edge | 1/4" |
| Distance to either hole from either side | 25/32" |
| Slide bolt | |
| Dia | 3/8" |
| Length | 11/16" |
| Movement distance | 5/16" |
| Screws (provided) | |
| Qty | 2 each |
| Type | 5-0 x 5/8" Torx countersunk machine screw |
| 3. TP 3161ML bumper/keeper | |
| Material | chrome plated Zamak |
| Mounting plate | |
| Thickness | 1/8" |
| Width, not including bumper | 27/32" |
| Width, including bumper | 1/2" |
| Height | 2-1/4" |
| Bumper housing | |
| Width | 7/16" |
| Height | 5/8" |
| Height off mounting surface | 15/16" |
| Bumper | |
| Material | black rubber |
| Dia | 1/2" |
| Thickness of material that clears housing | 3/32" |
| Mounting holes | |
| Dia | 1/4" |
| Hole to hole OC | 1-5/8" |
| Distance to either hole from top or bottom | 3/16" |
| Distance to either hole from either side | 5/16" |
| Keeper hole | |
| Width | 7/16" |
| Height | 27/32" |
| 4. TP 4260M bumper hook | |
| Material | chrome plated Zamak |
| Base is triangular in shape | |
| Width at top, by mounting holes | 1-1/2" |
| Width at bottom, Y mounting hole | 9/16" |
| Thickness | 1/16" |
| Height of raised front surface from mounting surface | 1/4" |
| Mounting holes | |
| Qty | 3 each at the top, 1 each at the bottom |
| Dia | 13/64"(between 3/1" and 7/32") |
| Top hole to top hole OC | 7/8" |
| Top hole to bottom hole OC | 1-15/16" |
| Top bumper hook | |
| Dia of narrow part | 11/32" |
| Dia of wide part that holds bumper | 5/8" |
| Length, from front surface, including bumper | 3-11/32" |
| Lower hook | |
| Dia | 1/4" |
| Length on the inside angle | 7/8" |
| Angle | approximately 30 degress (28 actual) |
| Bumper | |
| Material | black rubber |
| Dia | 1/2" |
| Thickness | 13/32" |
| Mounting hardware included | |
| 4 each TP 302 One-way shoulder bolt for top and bottom hinge | |
| 4 each TP 301 One-way barrel nut for top and bottom hinge | |
| 3 each #10 x 5/8" One way round head sheet metal screw | |
| for TP 4260 bumper hook | |
| 2 each #8 x 5/8" Torx countersunk sheet metal screw | |
| for TP 3161ML bumper/keeper | |
| 2 each 5-40 x 5/8" Torx countersunk machine screw | |
| for connecting the side plate and escutcheon plate | |
| of the TP 2901Ml slide latch | |
