Lockbar for Medart 72" 1-tier Locker; 1972-1996; 61-3/8" long
- SKU:
- ME-5009
- MFG Part #:
- 1472
DESCRIPTION

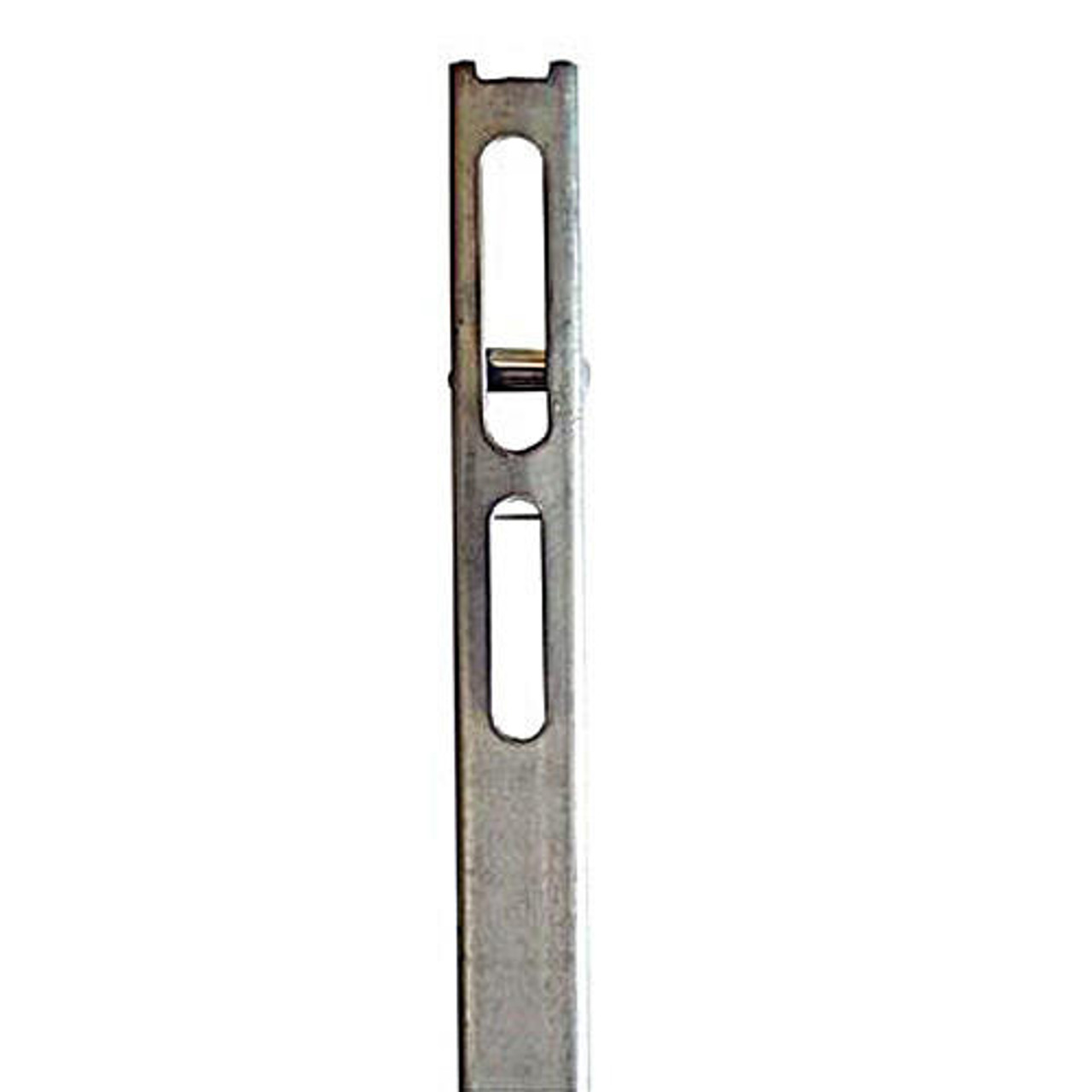

Replacement lock bar for Medart 72'' lockers. Actual lock bar size is 61-3/8''. To assure proper lock bar is shipped, samples are required.| General description | : Lock bar for a 72" 1-tier locker |
| Brand | : Lyon |
| Year | : 1972 to 1996 |
| Overhead shape | : Resembles a 'U' |
| Recognizable feature | : |
| - Sets of two elongated oval holes, one at the top and | |
| one at the bottom of the lock bar | |
| - Uses the ME-5516 Lock rod spring | |
| Handing | : Non-handed |
| Material | : Steel |
| Material thickness | : 1/32" |
| Overall height | : 61-5/16" |
| Outside width | : 11/32" |
| Outside depth | : 13/16" |
| Door jamb holes - there are five elongated oval holes on this | |
| lock bar - holes one and two are at the top, three is in the center | |
| and four and five are at the bottom. Holes one, three and five | |
| are longer than two and four, and they expose the roller portion | |
| of the lock rod spring. These are the holes that fit over the | |
| door jamb when the door is closed. It will be these holes we | |
| refer to in the following measurements | : |
| Height | : 1-5/8" |
| Width | : 5/16" |
| Distance from top of the lock bar to top edge of | |
| the top hole | : 13/32" |
| Distance from bottom of the lock bar to the bottom edge | |
| of the bottom large hole | : 1/4" |
| Locker handle and lock holes - On each side of the lock bar are | |
| a series of holes. Starting at the top of the lock bar | : |
| - A rectangular hole for the slide bolt of an optional locker lock | : |
| Height | : 7/8" |
| Width | : 3/8" |
| - A set of two round holes for the ME-5503 and ME-5523 lift handles | |
| to attach to | : |
| Dia | : 7/32" |
| Hole to hole OC | : 15/16" |
| - A smaller rectangular hole for the ME-5501 lift handle | |
| to attach to | : |
| Height | : 5/8" |
| Width | : 3/8" |
| Distance from the top of the lock bar to | : |
| - Locker lock hole (1st rectangular hole) | : 23-5/16" |
| - First round lift mounting hole | : 25-1/2" |
| - Second round lift mounting hole | : 26-7/16" |
| - Smaller rectangular lift hole | : 26-7/8" |
