DESCRIPTION

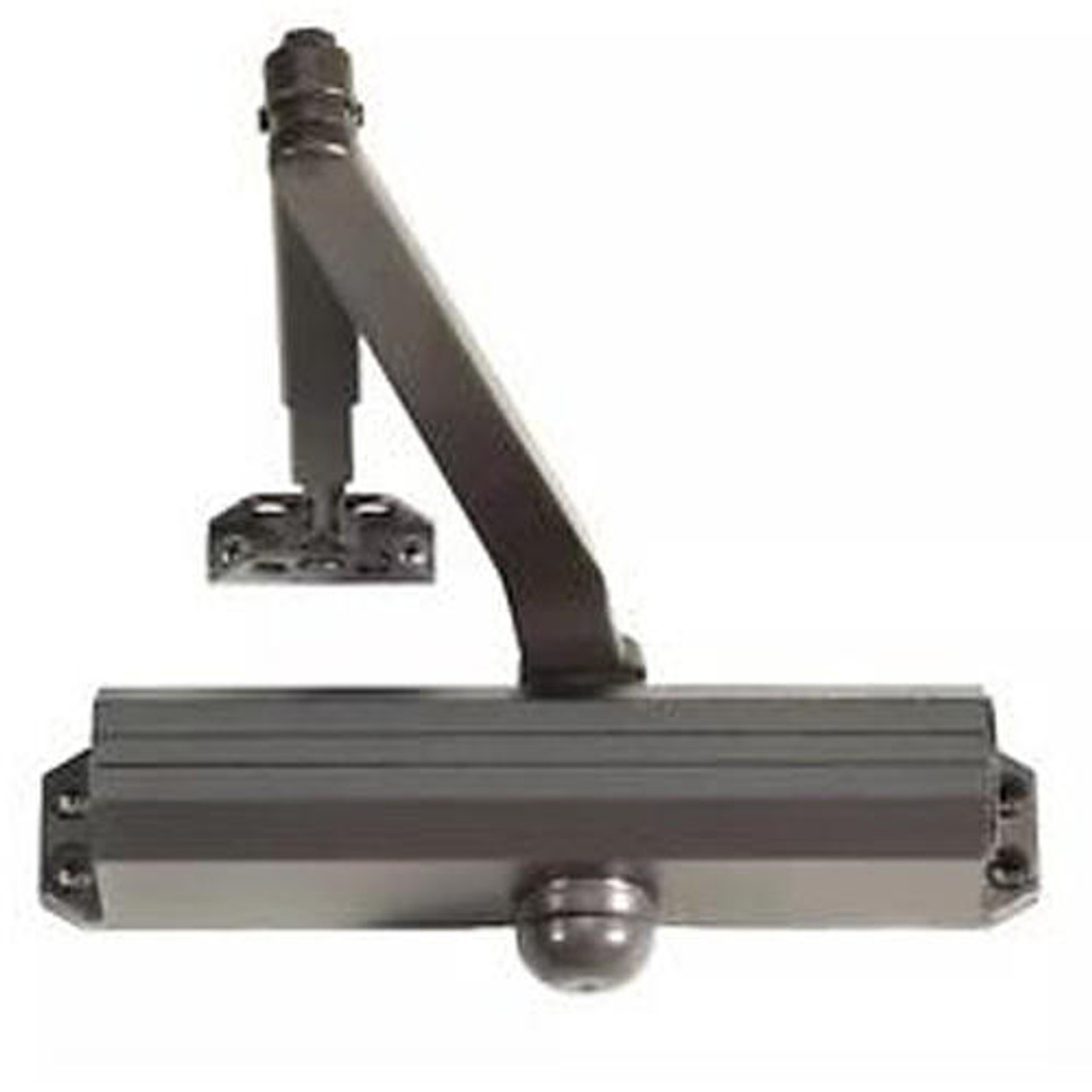

Norton door closure device mounts anywhere. For regular duty applications. Ideal for the office or classroom door.| Material body | : painted aluminum alloy |
| Main arm & soffit shoe | : painted steel |
| Pinion | : steel |
| MOUNTING (BOLT) HOLES | : |
| Closer body | |
| - Qty | : 4 each; 2 on top, 2 on bottom |
| - Dia | : 9/32" |
| - Type | : countersunk |
| - side to side hole to hole OC | : 9-1/16" |
| - Top to bottom hole to hole OC | : 3/4" |
| Arm Mounting Bracket | |
| - Qty | : 2 each |
| - Dia | : 1/4" |
| - Hole to hole OC | : 1-3/4" |
| - Soffit shoe (for parallel arm mounting) | |
| . - Qty | : 4 each each on top row, 2 each on bottom row |
| . - Dia | : 5/16" |
| . - Hole to hole OC | |
| . . - Top row side to side | : 2-3/4" |
| . . - Bottom row side to side | : 2" |
| . . - Top row to bottom row | : 7/16" |
| CLOSER POWER | : this door closer is set to power size 3 and works specifically with the following installations: |
| - regular and top jam mounting, on the following door sizes | : |
| . - interior - maximum 38" wide | |
| . - exterior - maximum 32" wide | |
| - parallel arm mounting, on the following door sizes | |
| . - interior - maximum 36" wide | : |
| . - exterior - maximum - 30" wide | |
