Top hinge for Metpar 1-1/4" square Edge Partition door
$16.06
- SKU:
- TP 3930
- MFG Part #:
- 3930
DESCRIPTION

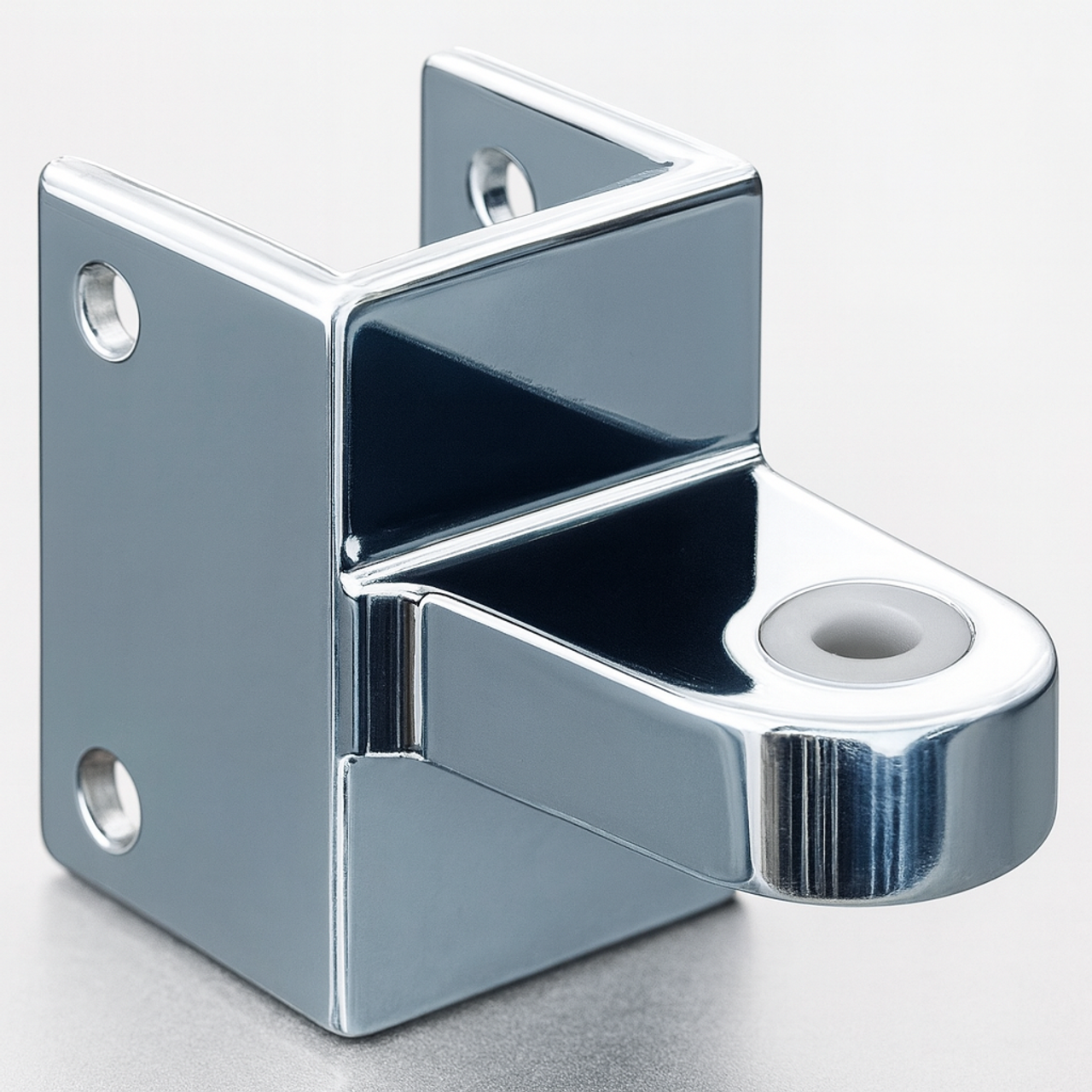

Replacement top door hinge for Metpar plastic laminate partition. Chrome plated Zamak.SPECIFICATIONS
| Brand | Metpar |
| Application | Used on a 1-1/4" thick, square edged pilaster |
| Material | Chrome plated zamak |
| 'A' Dimension (distance from back face of U-bracket | |
| to center of hinge pin hole | 1.104" / 1-7/64" |
| (between 1-3/32" and 1-1/8") | |
| This part consists of | |
| - A U-Bracket with holes for mounting to a pilaster | |
| - A tongue with bushing and hinge pin hole | |
| U-Bracket | |
| Material thickness | |
| Front plate | 9/64" (between 1/8" and 5/32") |
| Forks | 3/32" |
| Height | 2-1/4" |
| Width | |
| Inside | 1-9/32" |
| Outside | 1-1/2" |
| Depth | |
| Inside | 1-5/32" |
| Outside | 1-19/64" (between 1-9/32" and 1-5/16") |
| Mounting holes | |
| Qty | 2 per fork |
| Dia | 9/32" |
| Hole to hole OC | 1-1/2" |
| Distance from back of fork to center of hole | 11/32" |
| Tongue | |
| Distance from back face of U-bracket to center of | |
| hinge pin hole ('A' dimension) | 1.104" / 1-9/64" |
| (between 3/32" and 1-1/8") | |
| Width | 15/16" |
| Hinge pin hole | |
| Including bushing | 13/32" |
| Not including bushing | 17/32" |
| Bushing | |
| Material | Clear nylon |
| Thickness | 1/16" |
