All American Metal

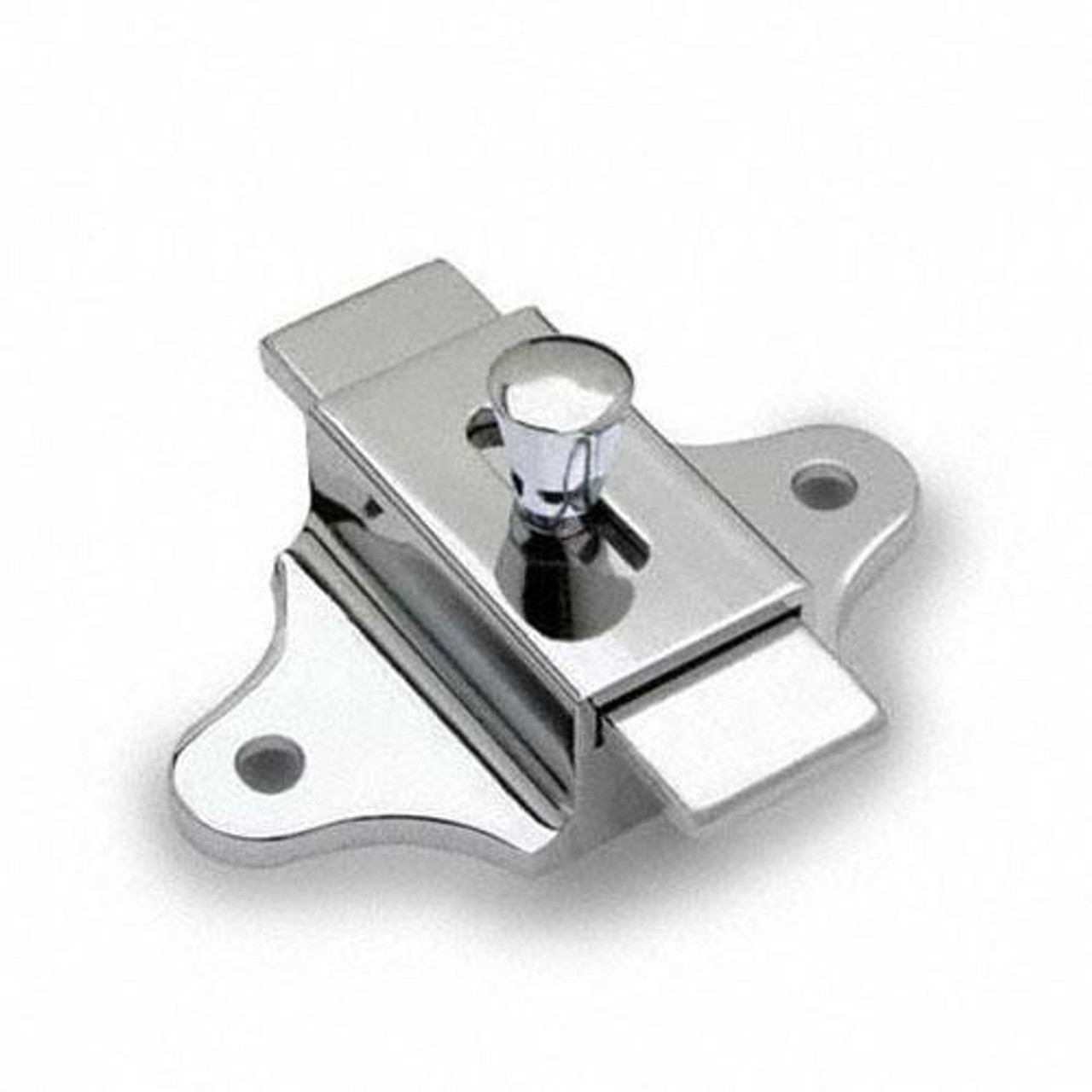

Hardware kit for All-American steel Door that is inswing or outswing; Includes hardware
$58.33
- SKU:
- TP AABE
- MFG Part #:
- #10-BE-DR-KIT
DESCRIPTION
Includes: top hinge, bottom hinge, hinge pin, turn latch, keeper, bumper hook and all mounting hardware.SPECIFICATIONS
| This is a kit. Information is listed in the following order | |
| - Coat hook with bumper | |
| - Turn knob | inner and outer |
| - Strike/keeper | |
| - Upper hinge | |
| - Upper hinge pin | |
| - Lower hinge with pintle | |
| - Lower door cam | |
| - Hardware | |
| Coat hook with bumper - consists of a mounting plate, | |
| straight upper hook with bumper and curved lower hook | |
| Material | Chrome plated zamak with black rubber bumper |
| Mounting plate | |
| Thickness | 5/32" |
| Width | 1-3/8" |
| Height | 1-7/8" |
| Mounting holes | |
| Qty | 2 |
| Dia | 7/32" |
| Hole to hole OC | 15/16" |
| Straight upper hook with bumper | |
| Overall length, from back of mounting plate | 3-1/8" |
| Diameter | |
| At mounting plate | 5/16" |
| At bumper | 9/16" |
| Bumper | |
| Length | 7/16" |
| Dia | 19/32" |
| Curved lower hook | |
| Hook dia | 1/4" |
| Inside dia of curve | 7/8" |
| Distance from curved hook to straight upper hook | |
| From top of highest portion of curve | 11/16" |
| From top of lowest portion of curve | 1-7/32" |
| Turn knob - consists of an inner handle and an outer | |
| escutcheon plate | |
| Material | Chrome plated zamak |
| Inner handle - female portion | |
| Handle shape | Bow tie |
| Outside dia | 1-5/8" |
| Diameter of hole it fits | 1-7/32" |
| Center hole | |
| Lock style | Steel split ring, bends around the |
| male post on the escutcheon plate | |
| Inside dia | 1/4" |
| Outer escutcheon plate (male portion) | |
| Outer plate | |
| Outside features | |
| - All-American's name is stamped on it | |
| - Emergency access slot | |
| Outside dia | 1-5/8" |
| Diameter of door hole it fits | 1-7/32" |
| Overall thickness/depth | 17/64" |
| (between 1/4" and 9/32") | |
| Male posts - there is a center and outside post | |
| Center to outside post OC | 1/2" |
| Center post | |
| Length, from back side of outer plate | |
| Overall | 1-1/16" |
| Lower portion only | 5/8" |
| Upper portion only | 7/16" |
| Diameter | |
| Lower portion | 3/8" |
| Upper portion | 1/4" |
| Outside post | |
| Length, from back side of outer plate | |
| Overall | 5/8" |
| Lower portion only | 15/32" |
| Upper portion only | 5/32" |
| Diameter | |
| Lower portion | 21/64" (between 5/16" and 11/32") |
| Upper portion | 11/64" (between 5/32" and 3/16") |
| Strike/Keeper - consists of a pair of mounting forks, | |
| a face plate with keeper hole, and bumper plate | |
| Material | Chrome plated zamak, with black rubber bumper |
| Mounting forks | |
| Height | 1-1/4" |
| Thickness | 7/64" (between 3/32" and 1/8") |
| Inside length, in the center | 1-1/16" |
| Distance between forks | 1-9/32" |
| Mounting holes | |
| Qty | 1 per fork |
| Dia | 9/32" |
| Distance from side edge of fork to hole center | 1/2" |
| Face plate | |
| Thickness | 5/32" |
| Height | 1-1/4" |
| Keeper hole | |
| Shape | Rectangular, with radius corners |
| Height | 3/4" |
| Width | 7/16" |
| Bumper plate | |
| Thickness, not including bumper | 3/8" |
| Height | 1-1/4" |
| Length of projection off front of face plate | 1-1/8" |
| Bumper | |
| Shape | Doughnut |
| Outside dia | 23/32" |
| Inside dia | 5/16" |
| Height off plate surface | 1/8" |
| Upper hinge | |
| Brand | All-American |
| Application | Used on a 1-1/4" thick, round edged |
| metal pilaster and a 1" thick, round edge metal door | |
| 'A' Dimension (distance from back face of U-bracket | |
| to center of hinge pin hole | 1-3/16" |
| This part consists of | |
| - A U-Bracket with holes for mounting to a pilaster | |
| - A tongue with hinge pin hole and bushing | |
| U-Bracket | |
| Material | Chrome plated zamak |
| Material thickness | 1/8" |
| Height | 2-3/16" |
| Width | |
| Inside | 1-1/4" |
| Outside | 1-1/2" |
| Depth | |
| Inside | 15/16" |
| Outside | 1-1/6" |
| Mounting holes | |
| Qty | 2 per fork |
| Dia | 9/32" |
| Hole to hole OC | 1-1/2" |
| Distance from back of fork to center of hole | 17/32" |
| Tongue | |
| Distance from back face of U-bracket to center of | |
| hinge pin hole ('A' dimension) | 1-3/16" |
| Height | 17/32" |
| Length, to front face of U-bracket | 1-5/8" |
| Width | |
| At U-bracket | 1" |
| At hinge pin hole | 15/16" |
| Hinge pin hole | |
| Including bushing | 21/64" (between 5/16" and 11/32") |
| Not including bushing | 17/32" |
| Bushing | |
| Material | White nylon |
| Thickness | 3/32" |
| Upper hinge pin | |
| Style | One end has outer grooves and inner threads |
| for backing the pin out | |
| Material | Stainless steel |
| Dia | 5/16" |
| Length | 2-13/16" |
| Grooves | |
| Length | 3/16" |
| Distance between grooves | 1/64" |
| Threads | |
| Thread size | 10-24 |
| Depth | 11/16" |
| Lower hinge with pintle, lock washers and nut | |
| Material | Chrome plated zamak |
| 'A' Dimension (distance from back face of U-bracket | |
| to center of hinge pin hole) | 1-3/16" |
| This part consists of | |
| - A U-Bracket with holes for mounting to a pilaster | |
| - A tongue with a pintle hole | |
| U-Bracket | |
| Material thickness | 1/8" |
| Height | 2-3/16" |
| Width | |
| Inside | 1-1/4" |
| Outside | 1-1/2" |
| Depth | |
| Inside | 15/16" |
| Outside | 1-1/6" |
| Mounting holes | |
| Qty | 2 per fork |
| Dia | 9/32" |
| Hole to hole OC | 1-1/2" |
| Distance from back of fork to center of hole | 17/32" |
| Tongue | |
| Distance from back face of U-bracket to center of | |
| hinge pin hole ('A' dimension) | 1-3/16" |
| Height | 17/32" |
| Length, to front face of U-bracket | 1-5/8" |
| Width | |
| At U-bracket | 1" |
| At hinge pin hole | 15/16" |
| Pintle hole | |
| Dia | 3/8" |
| Distance from hole center to outer tip of tongue | 9/16" |
| Pintle has a slanted upper nylon portion and a lower steel | |
| portion with an adjustment slot at the tip | |
| Material | |
| Upper | Nylon |
| Lower | Steel, bright finish |
| Upper portion | |
| Dia | 1/2" |
| Height | |
| At tallest point | 1-1/8" |
| At shortest point | 11/16" |
| Lower threaded portion | |
| Overall length | 1-1/8" |
| Thread size | 5/16-18 x 11/16" |
| Adjustment slot | |
| Width | 1/16" |
| Length | 3/16" |
| Depth | 3/32" |
| Upper lock washer | |
| Material | Steel |
| Type | External tooth |
| Thickness | 1/32" |
| Diameter | |
| Inside | 11/32" |
| Outside | 19/32" |
| Lower lock washer | |
| Material | Steel |
| Type | Internal tooth |
| Thickness | 1/32" |
| Diameter | |
| Inside | 11/32" |
| Outside | 19/32" |
| Nut | |
| Material | Steel |
| Type | Hex |
| Size | 5/16-18 |
| Outside drive | 1/2" |
| Lower door cam - consists of an upper cylindrical portion and | |
| a lower rectangular base | |
| Material | Nylon |
| Material thickness | 7/64" (between 3/32" and 1/8") |
| Overall height | 1-1/4" |
| Upper cylindrical portion - has an external locking tab that | |
| runs its length and a slanted inside roof that mirrors the | |
| top of the pintle (see lower door hinge) | |
| Outside | |
| Diameter | 11/16" |
| Length, above base | 1-9/64" |
| (between 1-1/8" and 1-5/32" | |
| Locking tab | |
| Length | 1-9/64" |
| Projection off surface of cylindrical portion | 5/32" |
| Inside | |
| Diameter | 17/32" |
| Length | |
| At tallest portion | 1-1/16" |
| At shortest portion | 19/32" |
| Lower rectangular base | |
| Width | 23/32" |
| Length | 1" |
| Mounting hardware is provided, and includes | |
| - 5 Each TP 302 10-24 x 1-5/16" One-way shoulder screw | |
| - 5 Each TP 303 10-24 x 5/8" One-way barrel nut | |
| - 2 Each #12 x 3/4" One-way tapping screw | |
