Stainless Steel Adjustable pilaster Post For 1-1/4 Ceiling hung Pilaster
- SKU:
- TP 8503
- MFG Part #:
- 8503
DESCRIPTION

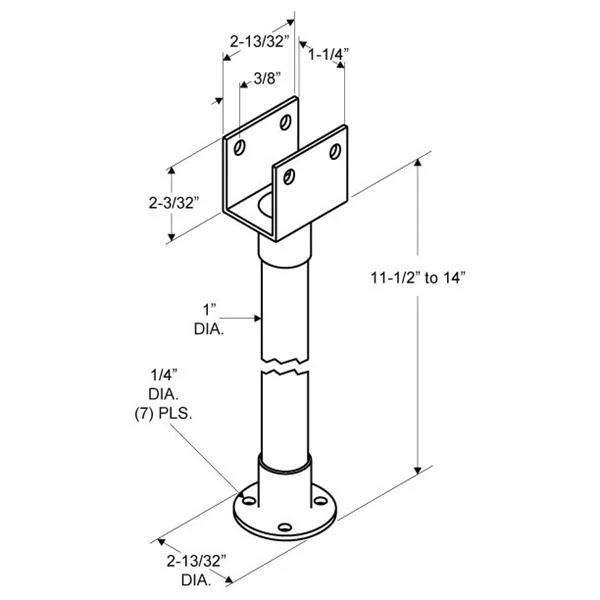

Anchor post to stabilize ceiling hung pilasters. Steel, adjusts from 12"-14", 1 1/4" thick pilasters.
| Material | : Satin stainless steel |
| Height range | : 11-1/2" to 14" |
| Upper U-bracket | |
| Thickness | : 3/32" |
| Length | : 2-1/2" |
| Outside height | : 1-1/2" |
| Inside height | : 1-7/16" |
| Inside channel width | : 1-5/16" |
| Mounting hole OC | : 1-1/2" |
| Pipe | |
| Length | : 10-3/4" |
| Thickness | : 1/16" |
| 16 gauge OD | : 3/4" |
| Bottom mounting plate | |
| Shape | : Round |
| Number of holes | : 6 |
| Hole to hole OC | : 3/4" |
| Bottom mounting plate has a 3/8-18 x 2 machine screw coming out | |
| of it, which goes into a machine inset in the bottom of the pipe. | |
| There is also a 21/32" hex nut attached at the base of the machine | |
| screw, and a serrated edged threaded locking nut just above that. | |
| This item comes with a dome shaped cover for the mounting plate. | |
| It is attached to a short sleeve so it can be slid up and | |
| out of the way for installation, then back down in place | |
| to cover the mounting plate | : |
| Dome height | : 7/8" |
| Dome dia at bottom | : 2-1/4" |
| Dome thickness | : 1/32" |
| Pipe height | : 1-9/32" |
| Pipe OD | : 7/8" |
| Pipe thickness | : 1/16", 16 gauge |
| Total height of cover with dome and pipe | : 2-3/16" |
