Hallowell/List/Art Metal Single Point Recessed Cup, Old Style, includes rivet

SKU:
MSTP100AR

DESCRIPTION

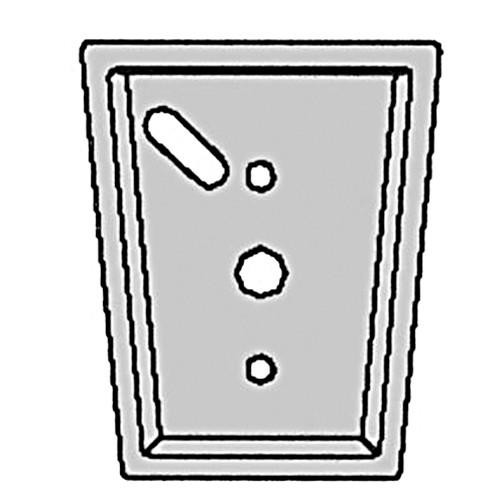

Single-point, formed, recessed handle for Hallowell/List/Art Metal locker. Steel pop rivet included.
Material: stainless steel
Thickness: 1/32"
Height
Outside lip: 5-3/4"
Inside cup
At the front : 5-1/4"
At the back: 4-5/8"
Width top
At the front: 3-11/16"
At the back: 3-5/16"
Bottom
At the front: 2-13/16"
At the back: 2-9/16"
Depth: 1-1/16"
Outside lip width: 1/4"
There is a section of trim that is a piece of steel rolled into a cylinder. It is placed at the top of the inside of the cup.
Length: 3-9/16"
Dia: 3/8"
Padlock staple slot
Shape: elongated oval
Placement: at a 10:00/4:00 position in the upper left corner of the back of the cup
Length: 1-1/16"
Width: 3/8"
Distance from left inside edge of cup to 10: 00 position of slot: 1/16"
Distance from 4: 00 position of slot to upper combination lock mounting hole: 7/16"
Combination lock holes
Mounting holes
Shape elongated oval
Qty: 2
Height: 7/32"
Width: 11/32"
Hole to hole OC
From top or bottom to middle hole: 1-3/32"
From top to bottom mounting hole: 2-3/16"
Distance from top of back of cup to top edge of top mounting hole: 1-3/8"
Distance from bottom of back of cup to bottom edge of bottom mounting hole: 27/32"
Middle, larger hole
Shape: slightly elongated oval
Height: 21/32"
Width: 2/32"
There is a mounting hole in the bottom 'shelf' of the cup
Dia: 5/32"
Distance from front edge of cup to center of hole: 1/4"
There are two mounting tabs, one in each upper corner of the cup, just behind the lip
Height: 5/16"
Depth: 5/16"
Space between the lip and the front edge of the tab
At the base of the tab: 5/64" (between 1/16" and 3/32")
At the top of the tab: 5/32"
