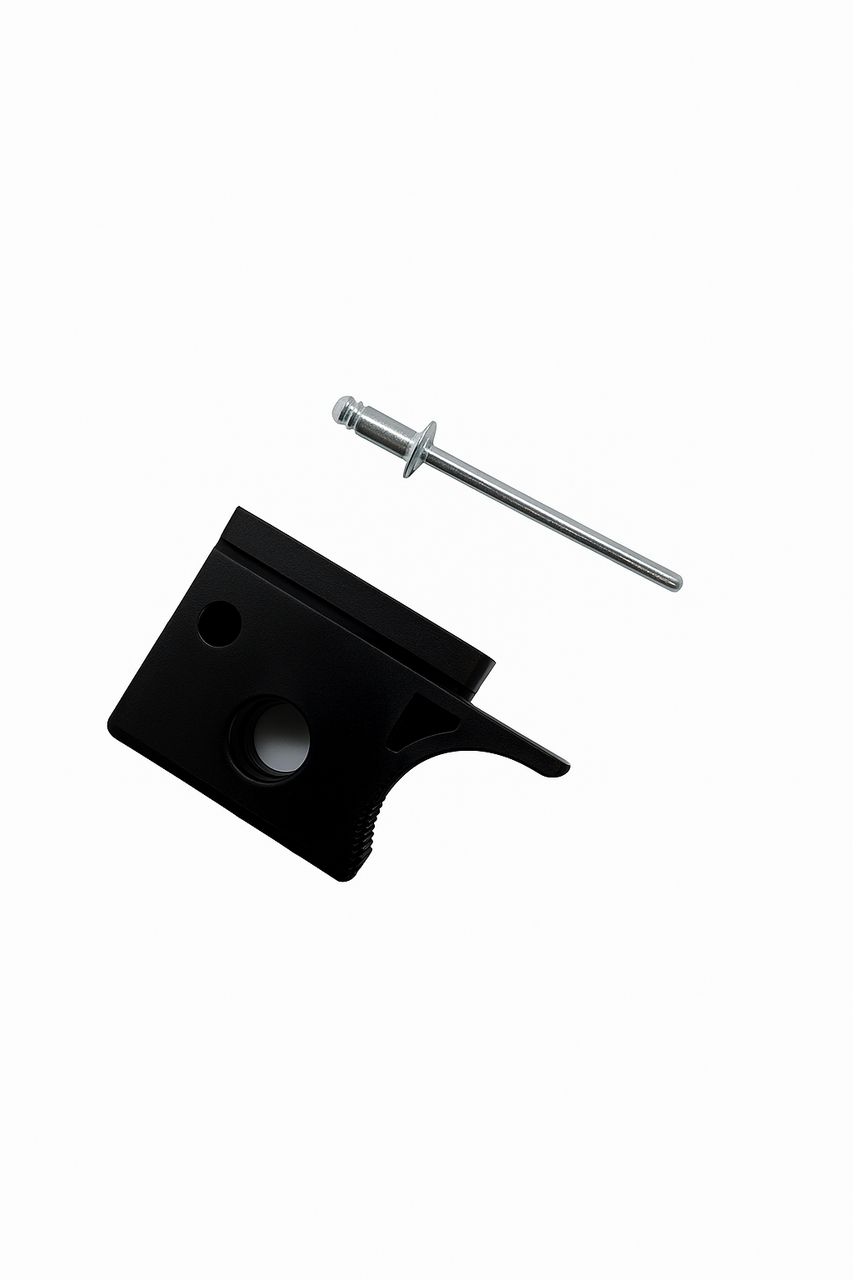

Republic Locker Door Plastic Handle & Rivet for Recessed Locker Handle Assembly
$3.47
- SKU:
- RS-2010
- MFG Part #:
- 704328
DESCRIPTION
Replacement self-locking plastic locker door handle for Republic Steel recessed handle & slide plate.
SPECIFICATIONS
| Material | Black plastic |
| Height - there are four | |
| Front edge | 1-5/16" |
| Concave curve witha a dime edge, just behind fron edge | 1-7/32" |
| Long part near the back | 1-13/16" |
| Very back, just behind a slot | 1-5/16" |
| Width | 7/16" |
| Dia of holes - there are two. Both go all the way from one side | |
| through to the other side of the trigger | |
| Padlock hole | 11/32" |
| Hole tha snaps over finger tab on lift | 3/16" |
| Slots - there are three. | |
| One middle slot | runs from top to bottom and front to back, |
| in line with, and through the middle of the tirgger (basically, | |
| the whole middle section is cut out). This slides over a portion | |
| of the lift. As you face each side | |
| Height | 15/16" |
| Depth | 3/32" |
| Width | 1/16" |
| The other two run vertically up and down the side of the | |
| trigger just behind the long portion. These fit down over | |
| and slide up and down the edges of the back cup slot when | |
| the lift is activated. | |
| Mounting hardware | an aluminum pop rivet with steel mandrell, |
| Mandrell | |
| Dia | 5/32" |
| Length | 7/16" |
| Head dia | 5/16" |
