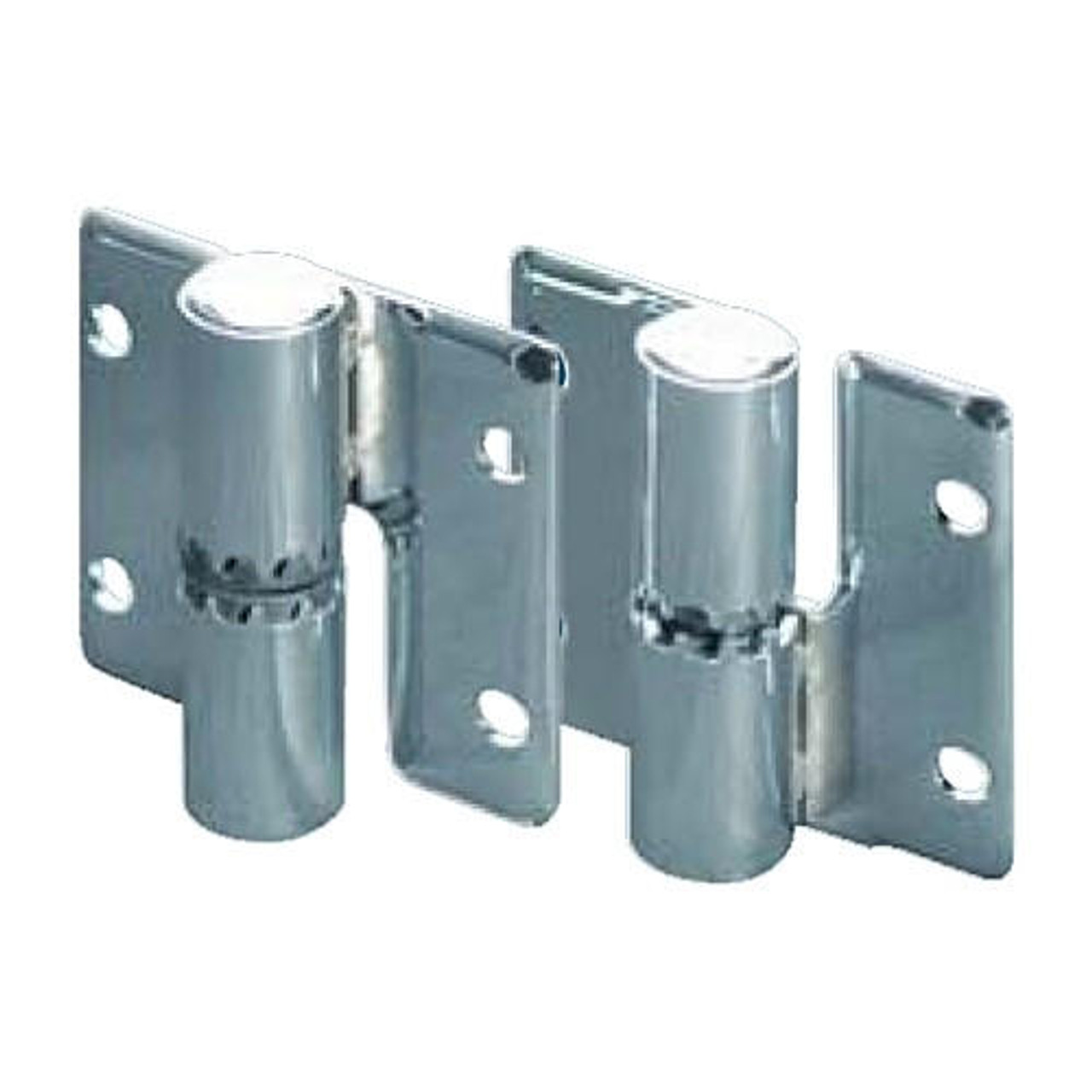

Surface mount hinge, RHI, Chrome plated brass, for 1-1/4" Pilaster or 1" door
- SKU:
- TP 7011
- MFG Part #:
- 7011
DESCRIPTION
Phenolic partition replacement hardware. TP 1500 - LHIN/RHOUT, TP 1510 - RHIN/LHOUT Cast stainless steel adjustable hinges.| Material | : Stamped stainless steel |
| Gauge | : 12 |
| Thickness | : .097" |
| Finish | : Polished Steel |
| Mounting plates | |
| Side to side width of both plates | : 3" |
| Top to bottom height | : 2-1/2" |
| Mounting holes | |
| Dia | : 1/4" |
| Side to side hole OC | : 2-1/4" |
| Top to bottom hole OC | : 1-1/2" |
| Outer barrels | |
| Shape | : Round |
| Dia | : 3/4" |
| Height | |
| Just each steel portion | : 1-3/16" |
| Each portion, with nylon | : 1-3/8" |
| Total height of both barrels, with nylon | : 2-13/16" |
| Each hinge has a steel pin. Half of the pin is molded into the | |
| center of the lower piece. The other half slides into the | |
| center of the other piece to give it something to swivel on. | |
| The upper set of hinges has a pin with an angled cutout, | |
| like a pintle, so that the door can be set to close. | |
| The lower set of hinges has a straight pin with a straight tip. | |
| It moves freely within the upper barrel, but is not removeable. | |
| Length | : 1-1/4" |
| Dia | : 3/8" |
| Door swing limit with this hinge | : 110 Degrees |
| Mounting hardware is provided, and includes | : |
| 4 Each TP 302 10-32 x 1-1/4" One-way shoulder bolt | |
| 4 Each TP 301 10-32 x 1" One-way shoulder bolt | |
| 8 Each TP 303 10-32 One-way barrel nut | |
| 1 Each 11/16" E-Cliip | |
